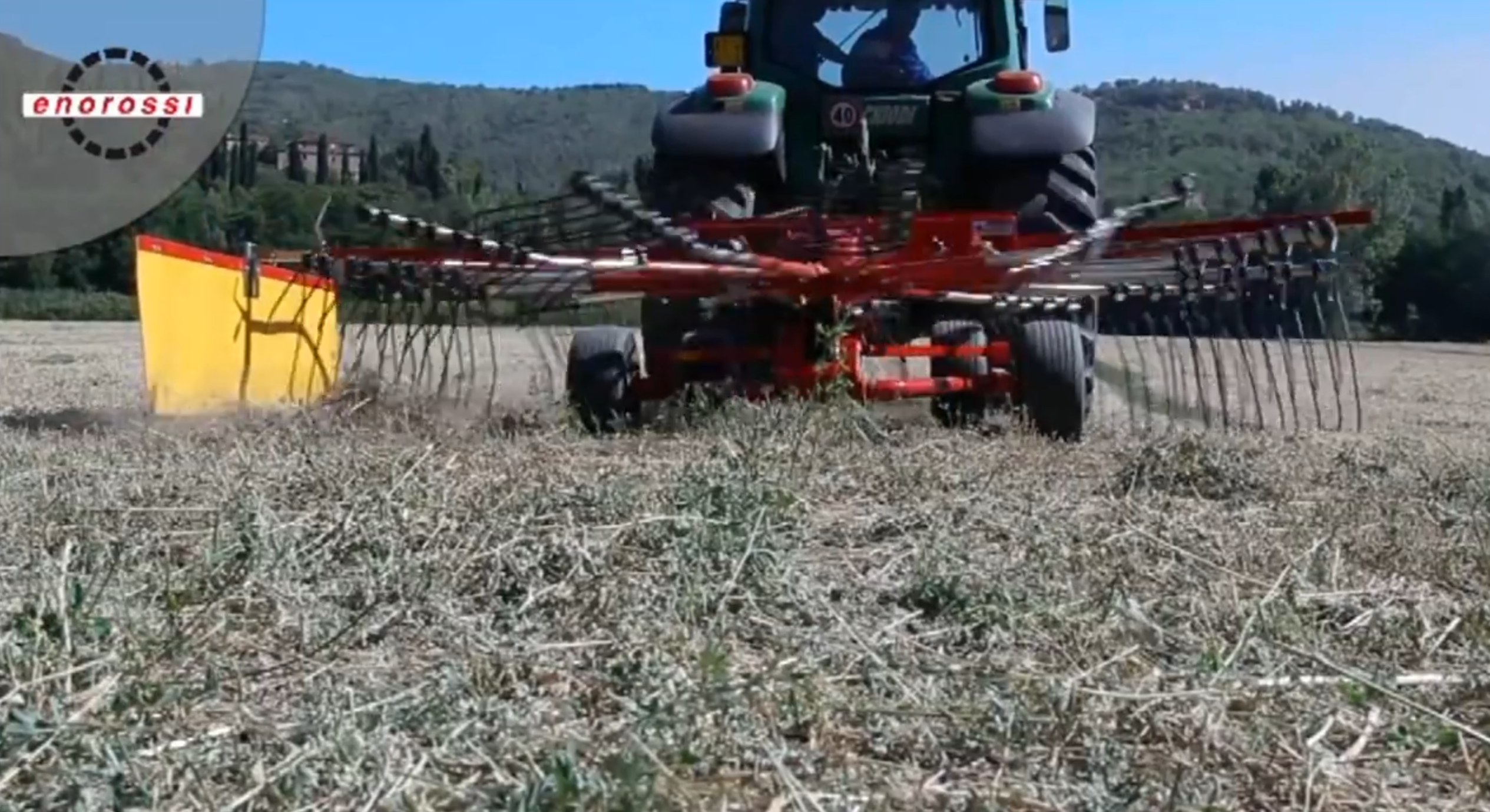

Enorossi Rotary Rake
Enorossi's Single & Double Rotary Rakes comes standard with pneumatic pivoting wheels and heavy tubular tine arms that are removable for transport.

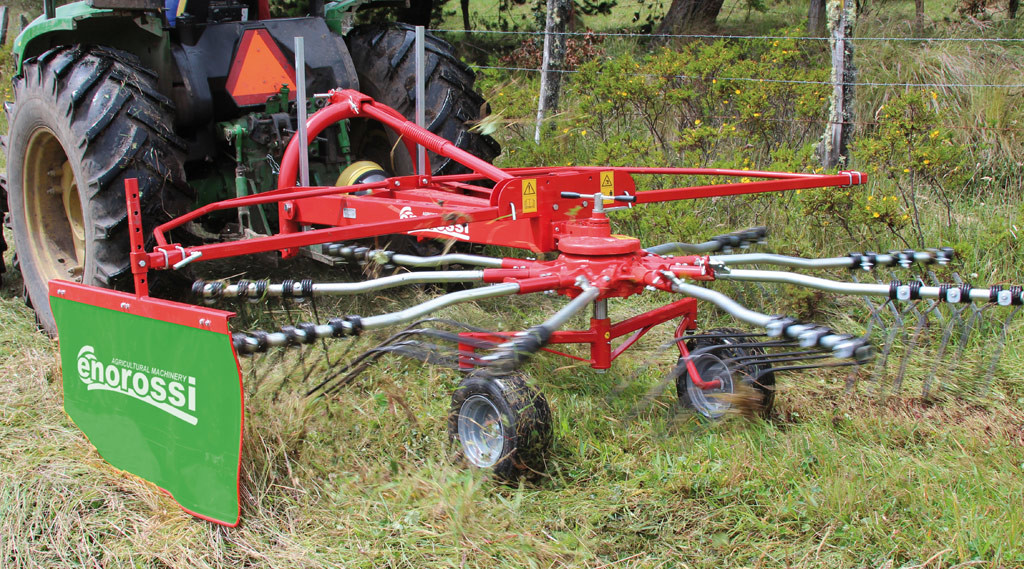

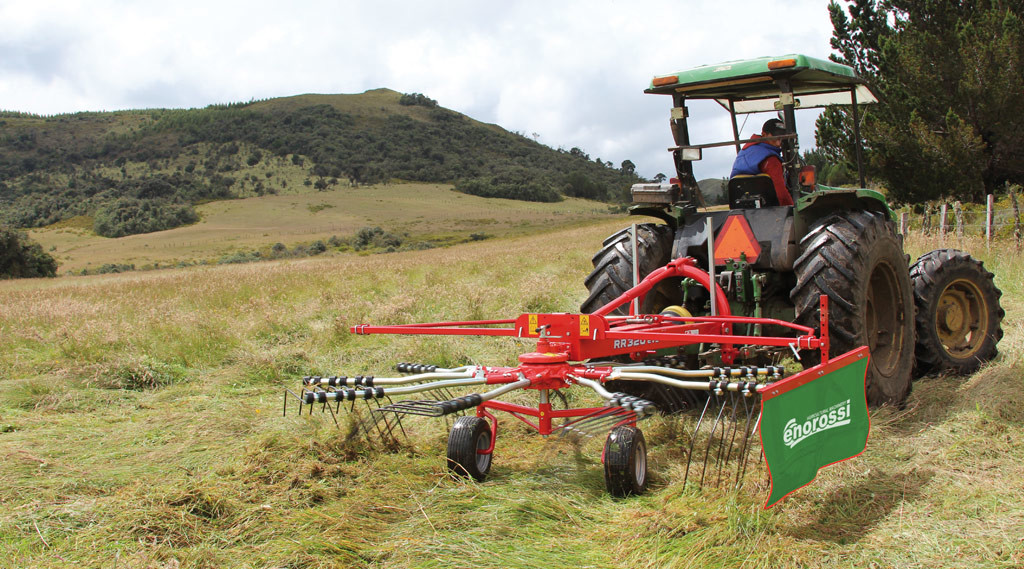

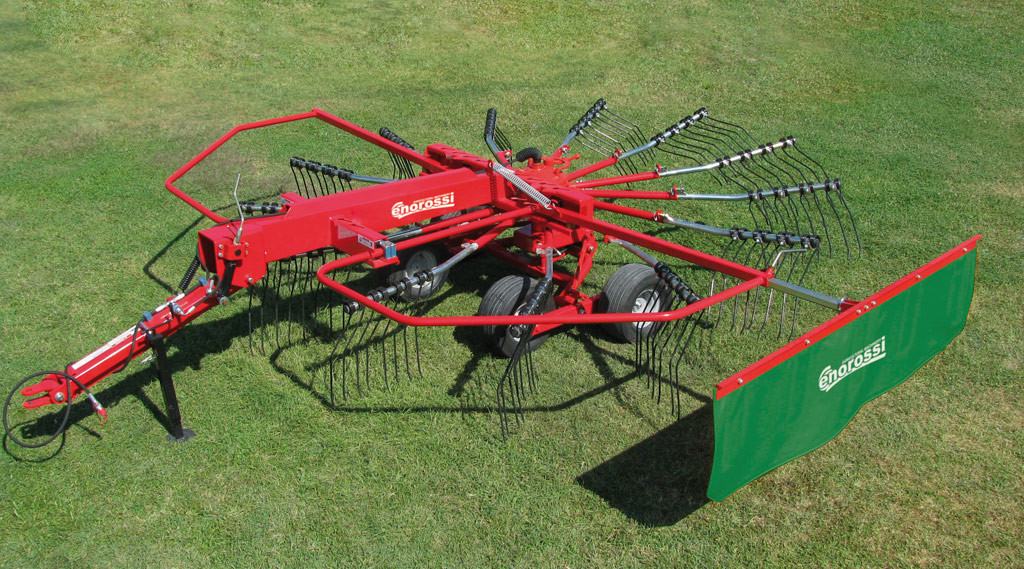

RR 320-350: Rotary rake with oil bath gearbox and cardan shaft with slip clutch. Pneumatic pivoting wheels on the RR 320 and tandem wheels on the RR 350 model. Increased arms thickness (5 mm.). Provided with articulated frame with shock absorber. Wheels 16.650-8.

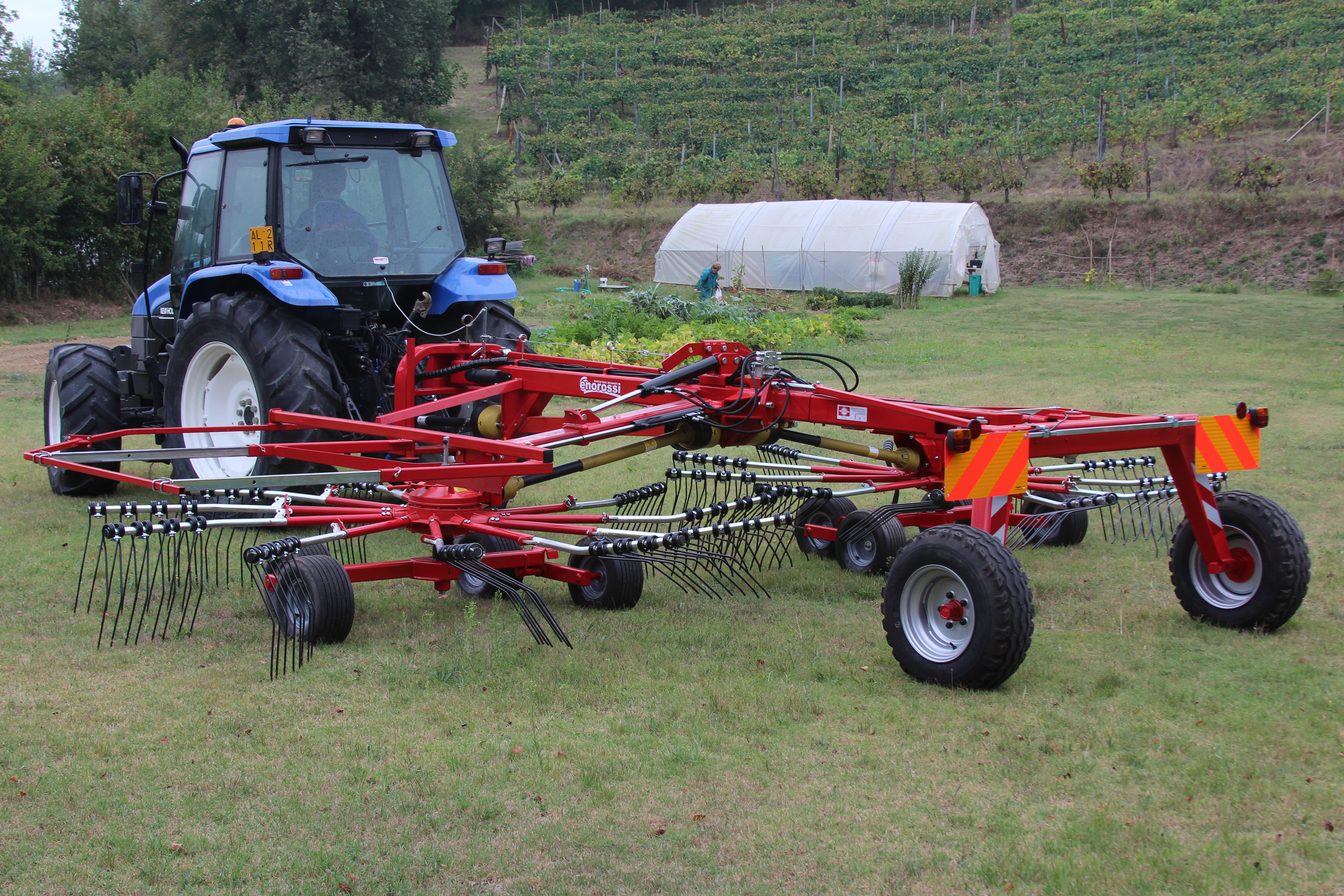

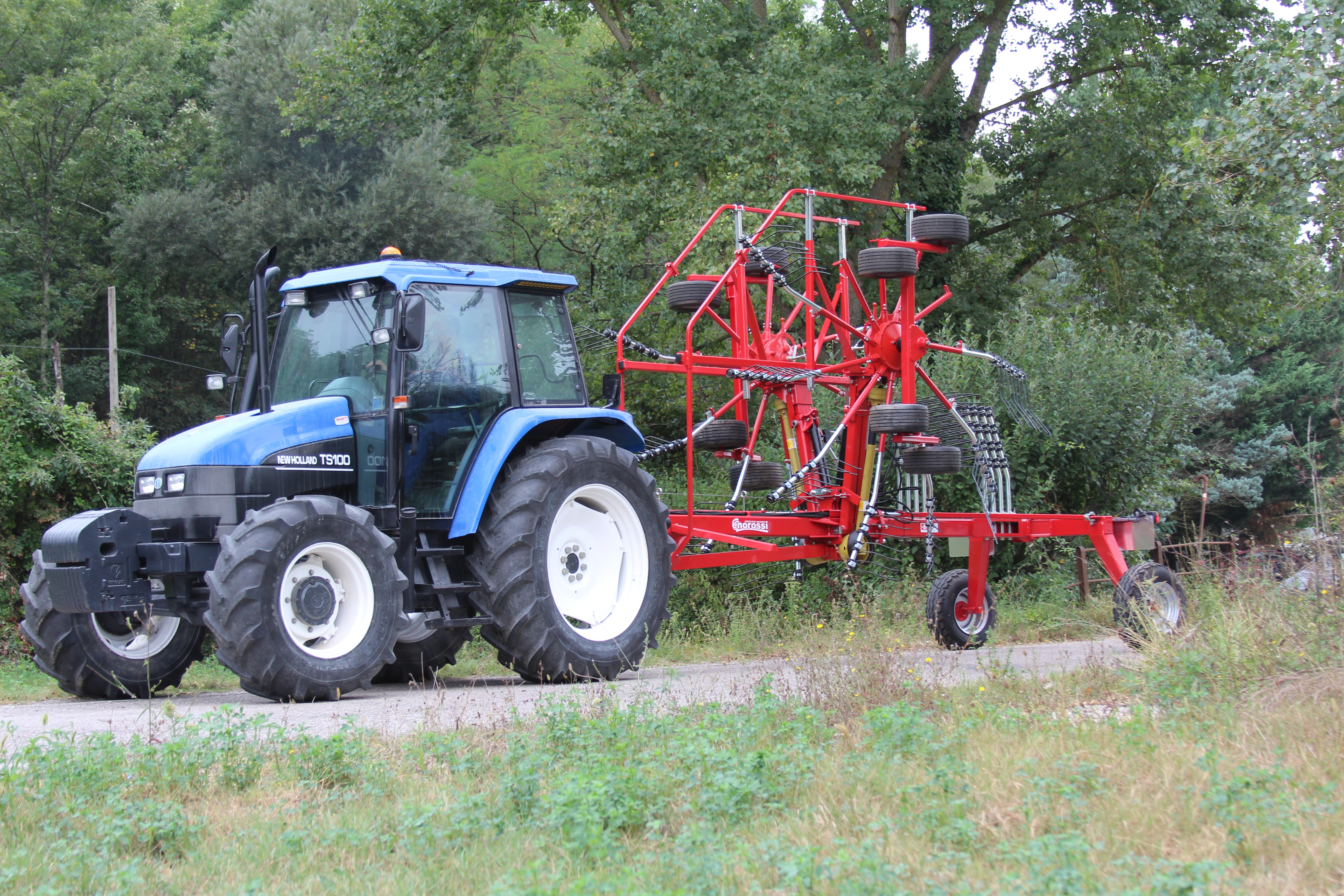

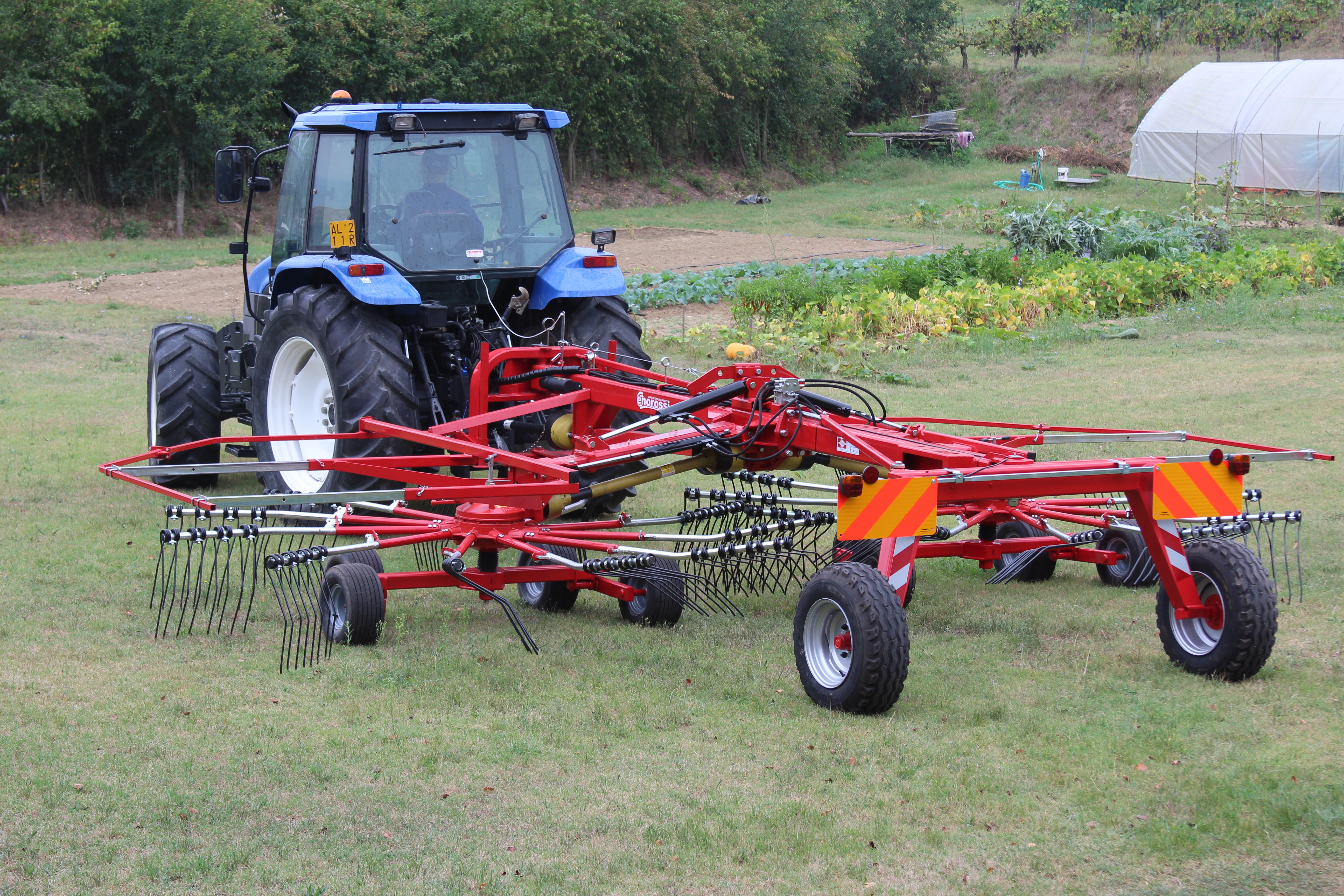

RR 780: Our range of double rotory rakes consists of two models, mounted (610-660) and a semi-mounted model (780). The rotors are lifted hydraulically and they are locked during transport.
- 13'9" or 25'6'' Max. Working Width
- Extra heavy duty frame and components
- Hydraulic transport lift standard
- Heavy-duty, sealed oil bath gearbox
- Large, high floatation tire
- Standard tandem axle
- Removable tine arms
- Great economic option for those smaller-range tractors and hilly conditions
- 20" Ground Clearance Hydraulic Lift for transport
- Folding guards to reduce transport height
- Hydraulic adjustable width and fold
Key Features
Models Available
BR Equipment Benefits
Choosing BR Equipment for your Enorossi machinery means you’re getting more than just a product—you’re getting a partner who understands your operation. BR Equipment combines the proven reliability and performance of Enorossi equipment with local expertise, responsive support, and a commitment to keeping your machines running at their best.
From helping you select the right implement to providing parts, service, and ongoing guidance, they make sure your investment delivers real results in the field.
Specifications
| Model | No. of Arms | Tines | Working Width | Transport width | HP | Weight | Lift |
|---|---|---|---|---|---|---|---|
| RR 350 | 9 | 27 | 11.6 ft. | 3.6 ft. | 30/40 | 827 Lbs | 3 Pt |

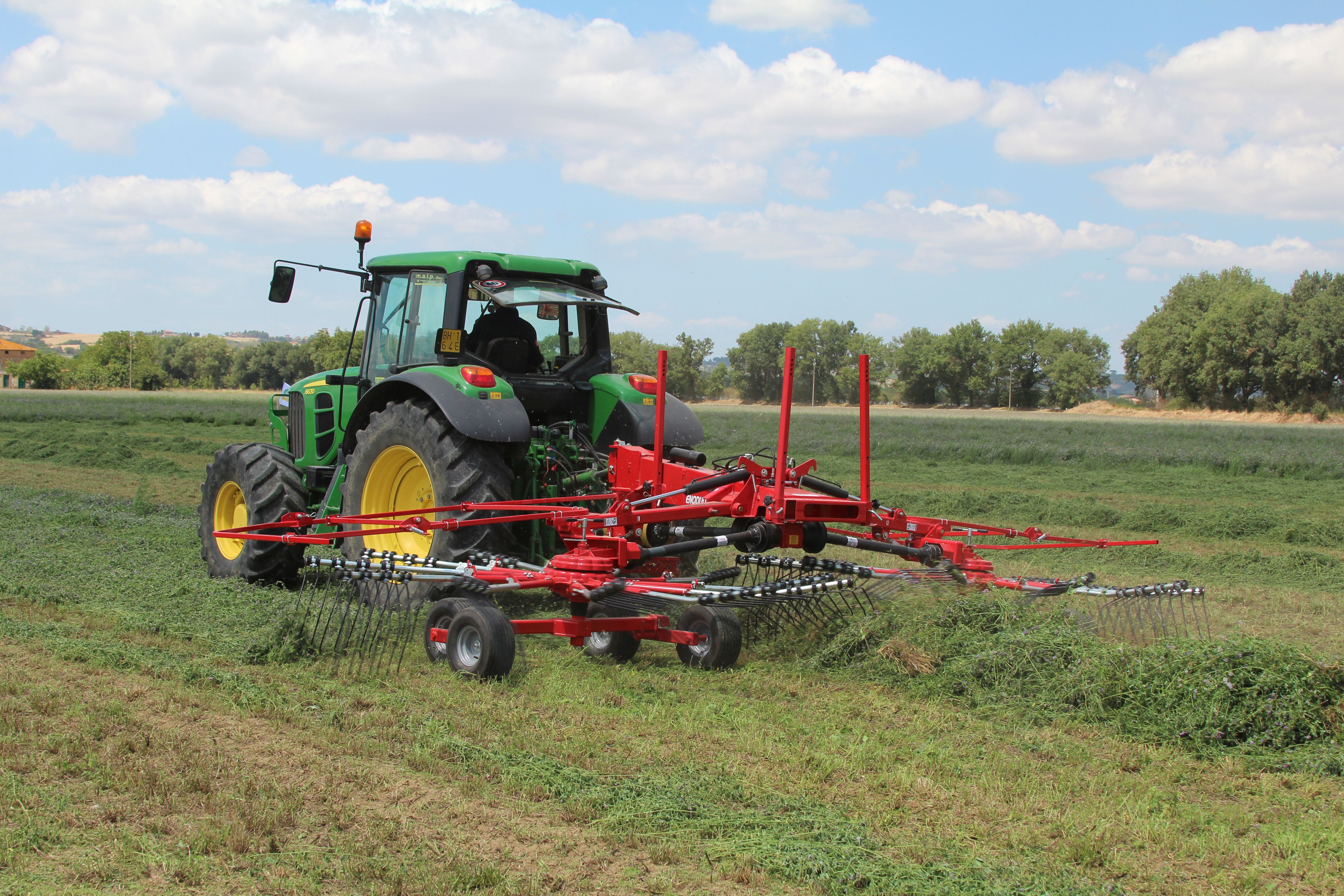

| RR420 EVO PT | 11 | 44 | 13.9 ft. | 6.5 ft. | 40-45 | 1370 Lbs | Pull Type Hydraulic |
| ENODUO 780 | 22 | 88 | 23/25.6 ft. | 8.2 ft. | 70-80 | 3951 Lbs | Semi-Mount Hydraulic |
Downloads

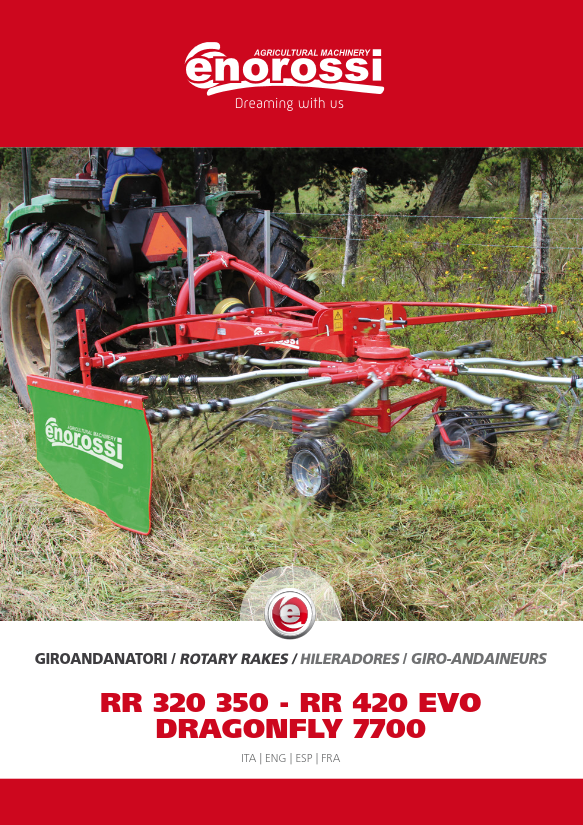

Brochure-320-350-RR420-7700.pdf

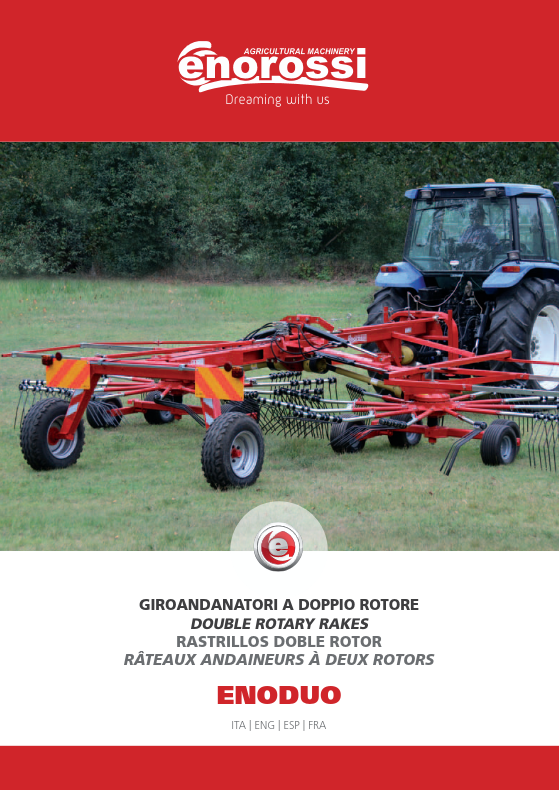

Brochure Enoduo 780.pdf

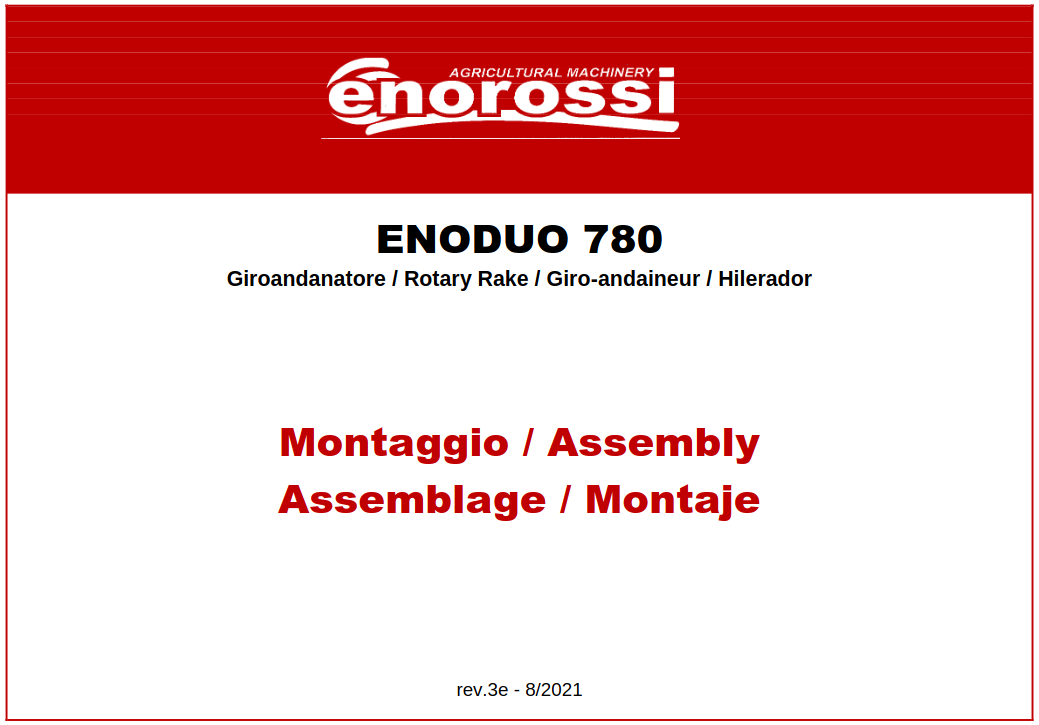

ENODUO-780-IM-rev.3e.pdf

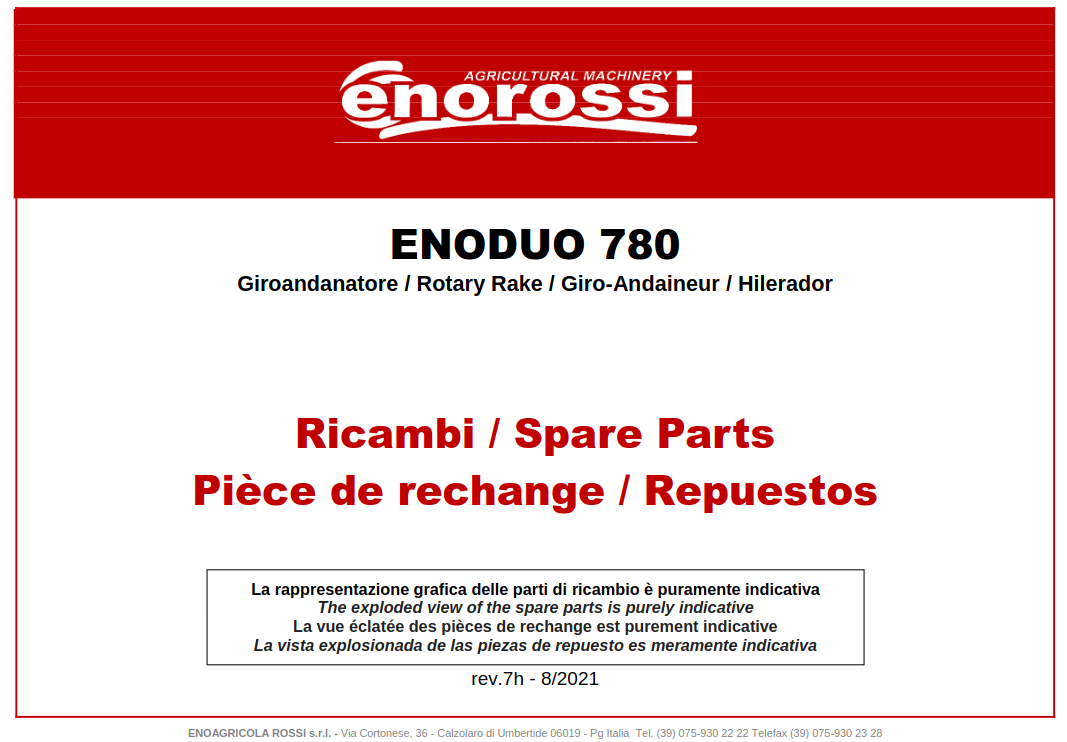

ENODUO-780-SP-rev.7h.pdf

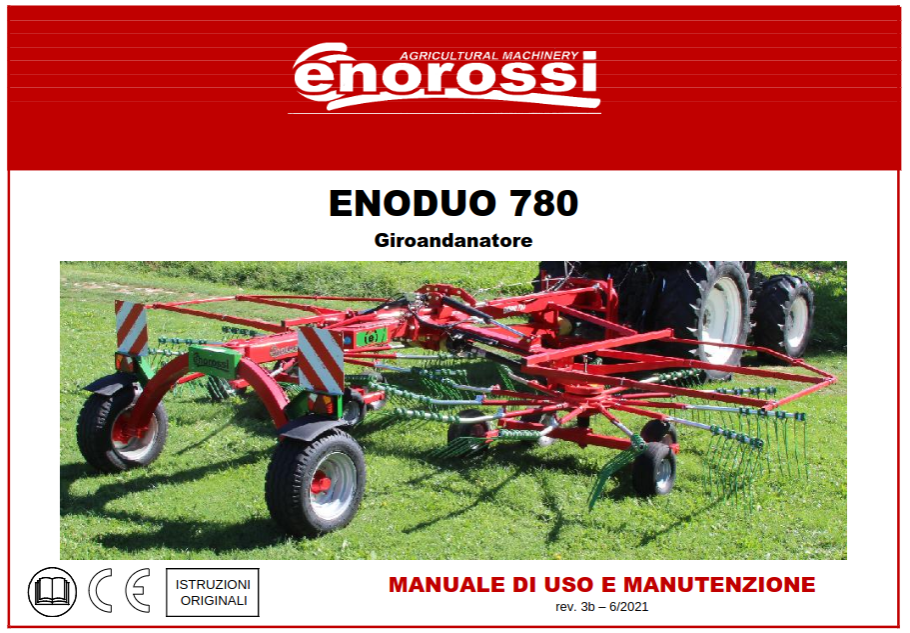

ENODUO-780-UM-rev.3b-ita.pdf

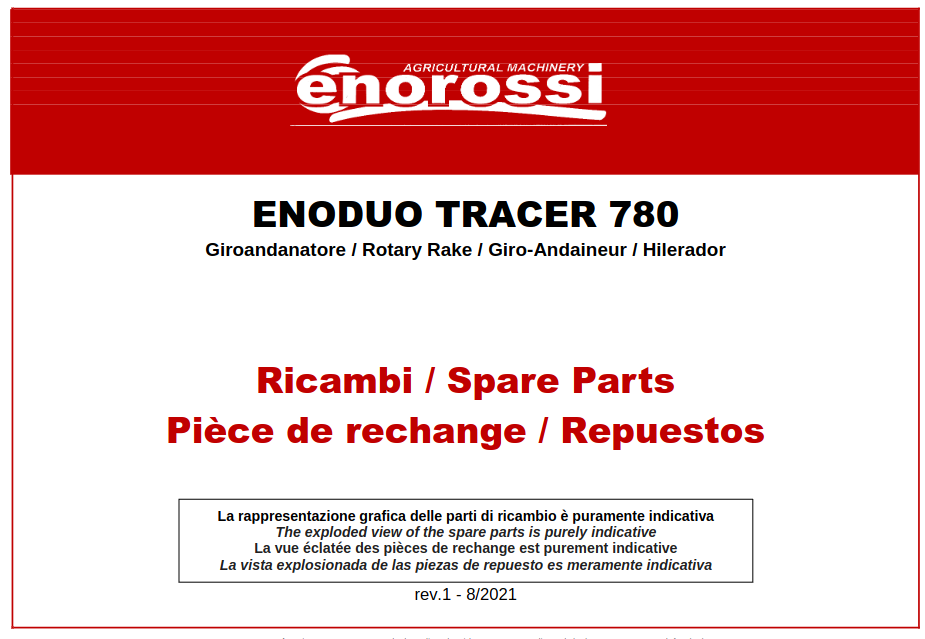

ENODUO-TRACER-780-SP-rev.1.pdf

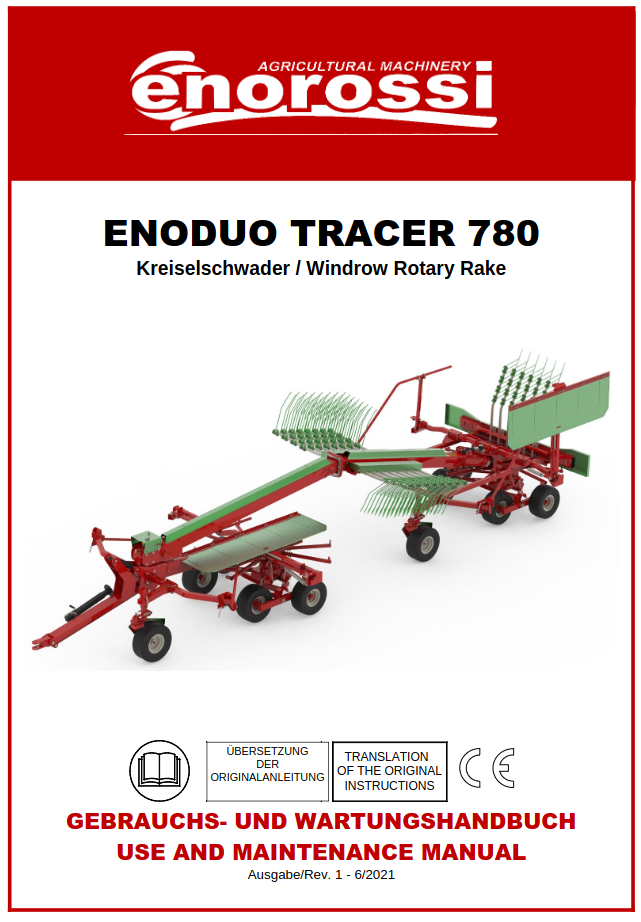

ENODUO-TRACER-780-UM-rev.1-ingTed.pdf

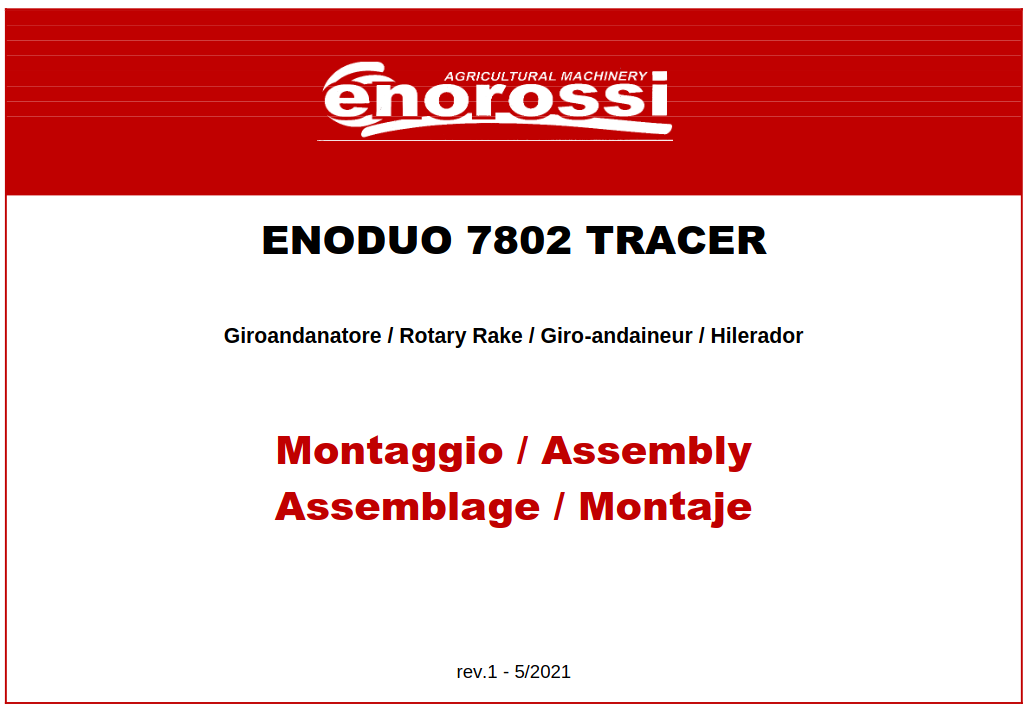

ENODUO-TRACER-7802-IM-rev.1.pdf

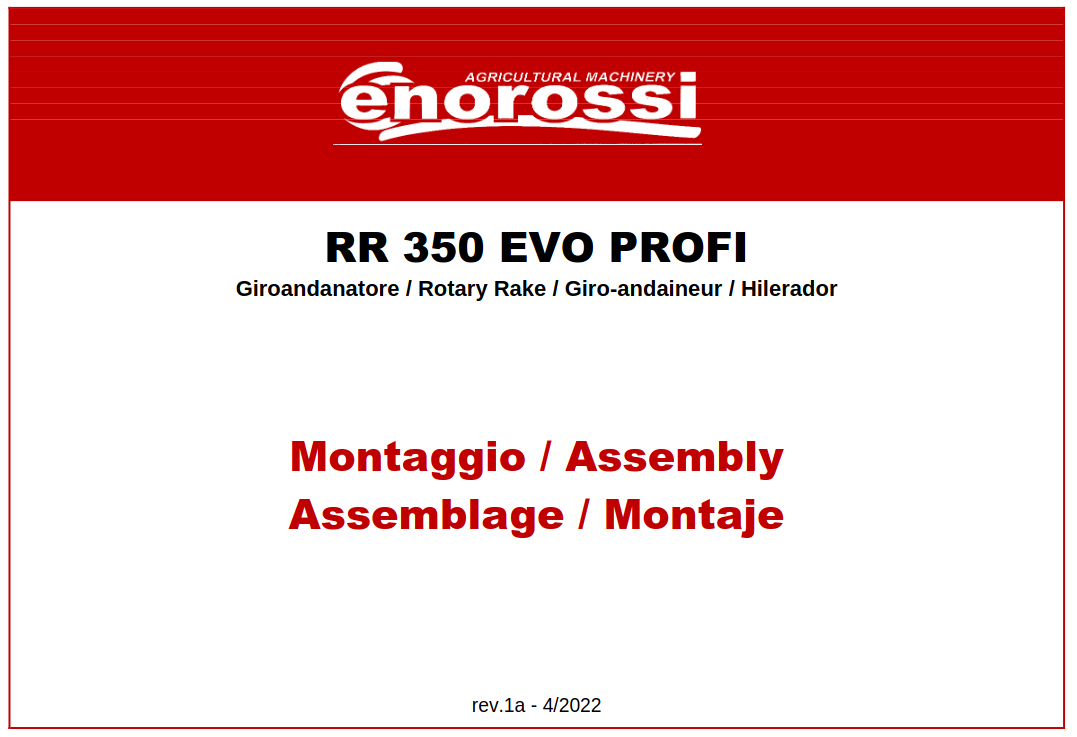

RR-350-EVO-PROFI-IM-rev.1a.pdf

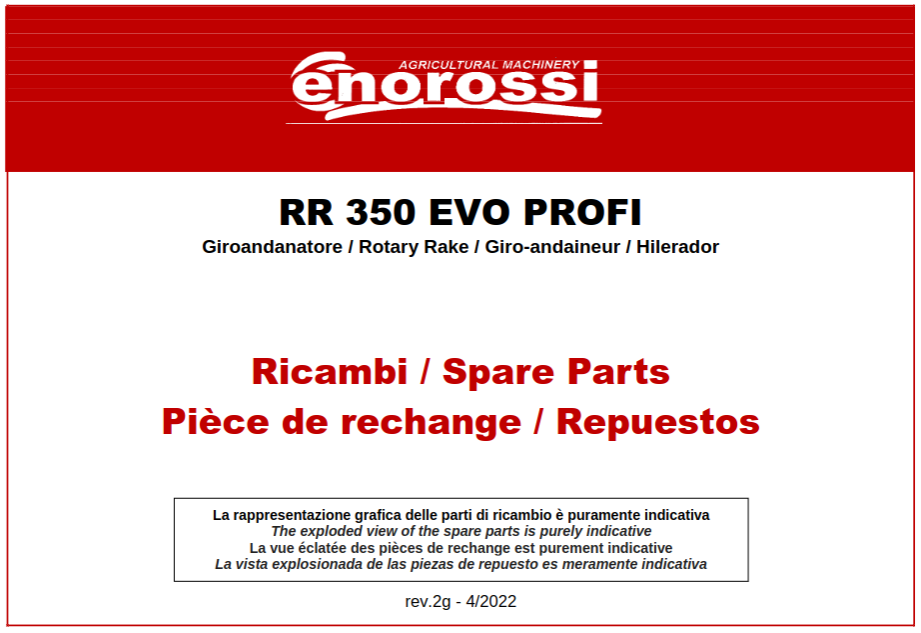

RR-350-EVO-PROFI-SP-rev.2g.pdf

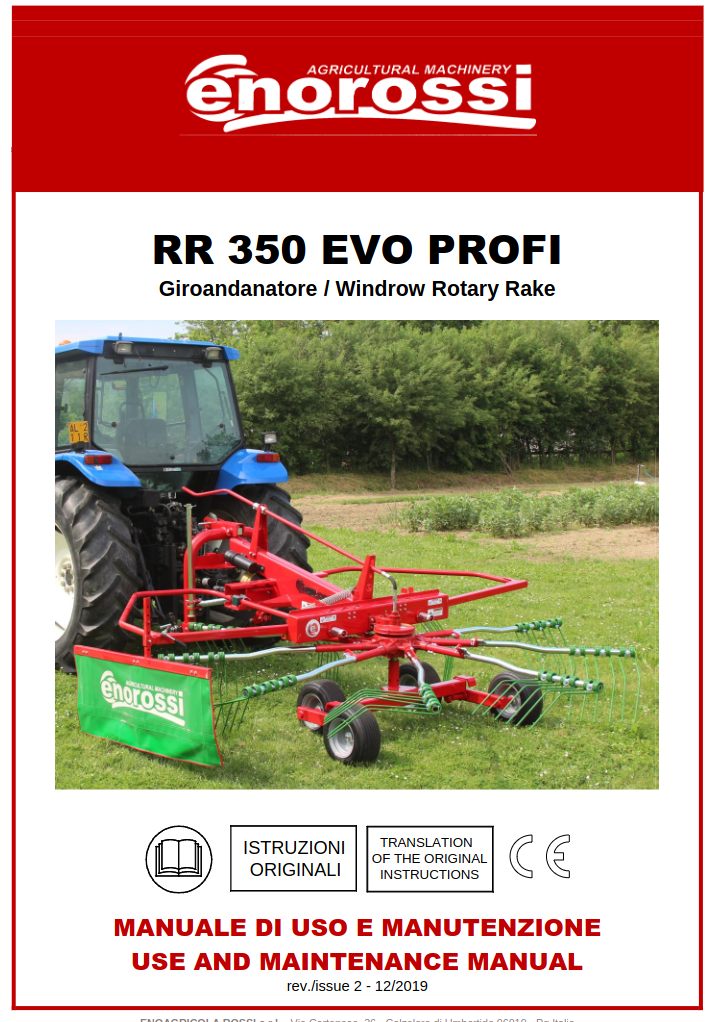

RR-350-EVO-PROFI-UM-rev.2-ita-ing.pdf

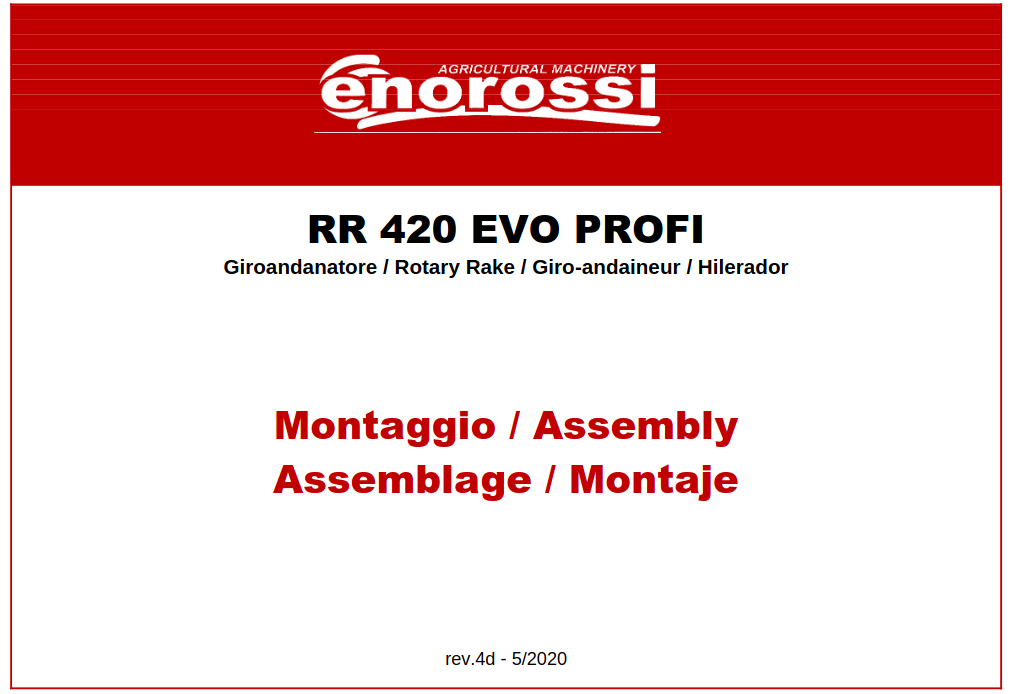

RR-420-EVO-PROFI-IM-rev.4d_0.pdf

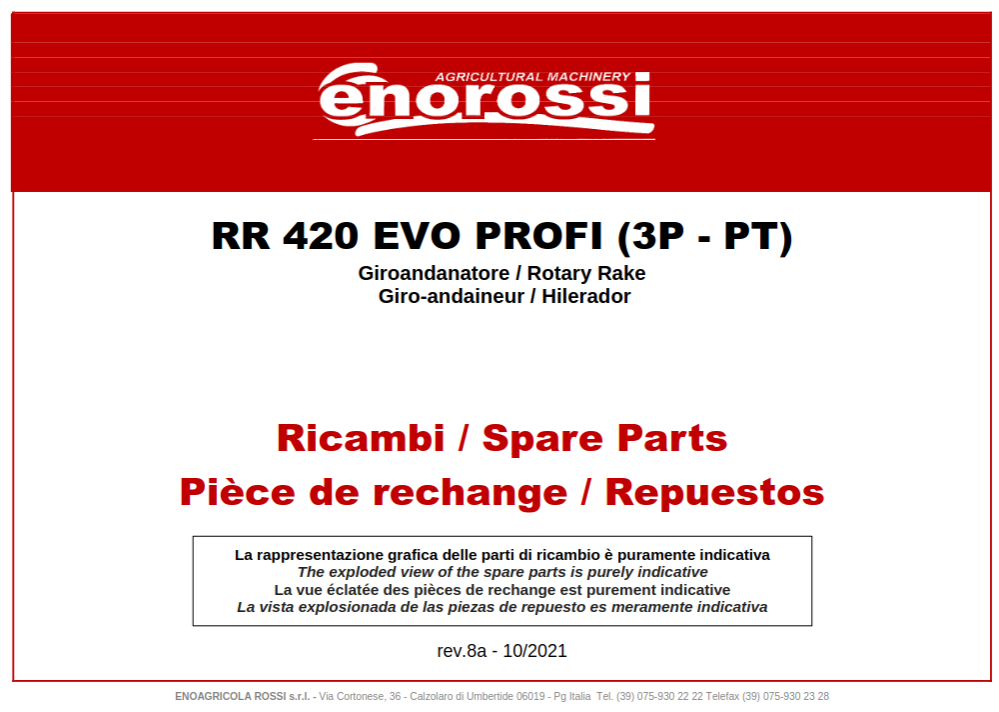

RR-420-EVO-PROFI-SP-rev.8a_0.pdf
