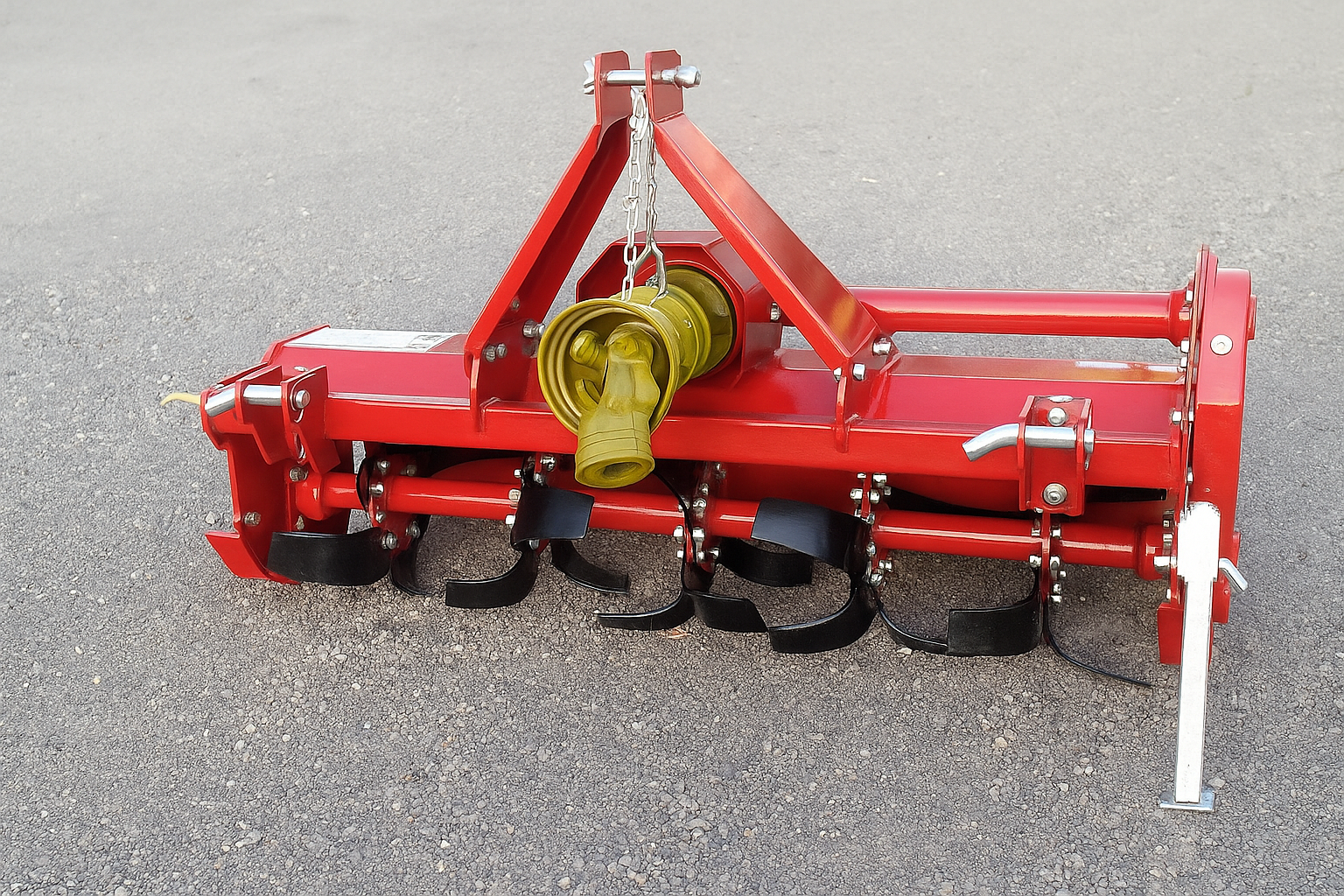

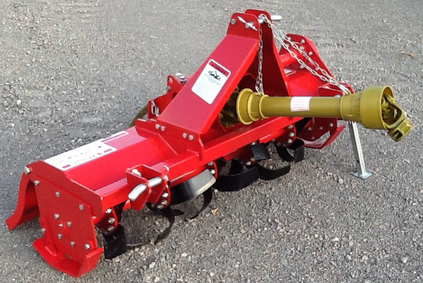

TC Series Tiller
Rated for tractors up to 30 HP, the TC Series is a great tiller for small subcompact tractors.
The TC has a heavy #80 drive chain and come in 3 working widths 40”, 50” an 59” with 6 blades per flange and slip clutch protection.
Models Available
TC-40
TC-50
TC-59
BR Equipment Benefits
Specifications
| Model | Description | Blades x Flange/PTO Protection | Drive | Weight (lbs.) |
|---|---|---|---|---|
| TC-40 | 40” Rotary Tiller | 6 Blades / Slip Clutch | #80 Chain | 337 |
| TC-50 | 50” Rotary Tiller | 6 Blades / Slip Clutch | #80 Chain | 374 |
| TC-59 | 59” Rotary Tiller | 6 Blades / Slip Clutch | #80 Chain | 412 |
Downloads
Operator’s Manual TC & RT Rotary Tiller
The Cherokee Implements TC & RT Series Manual provides safety, setup, and maintenance guidance for rotary tillers used with Category 1 tractors (540 RPM). It detail initial setup—including lubrication, gearbox oil, and PTO shaft connections—alongside operation and highway transport precautions. The text outlines routine maintenance schedules and storage to protect warranties, ending with illustrated parts breakdowns and full warranty terms.
